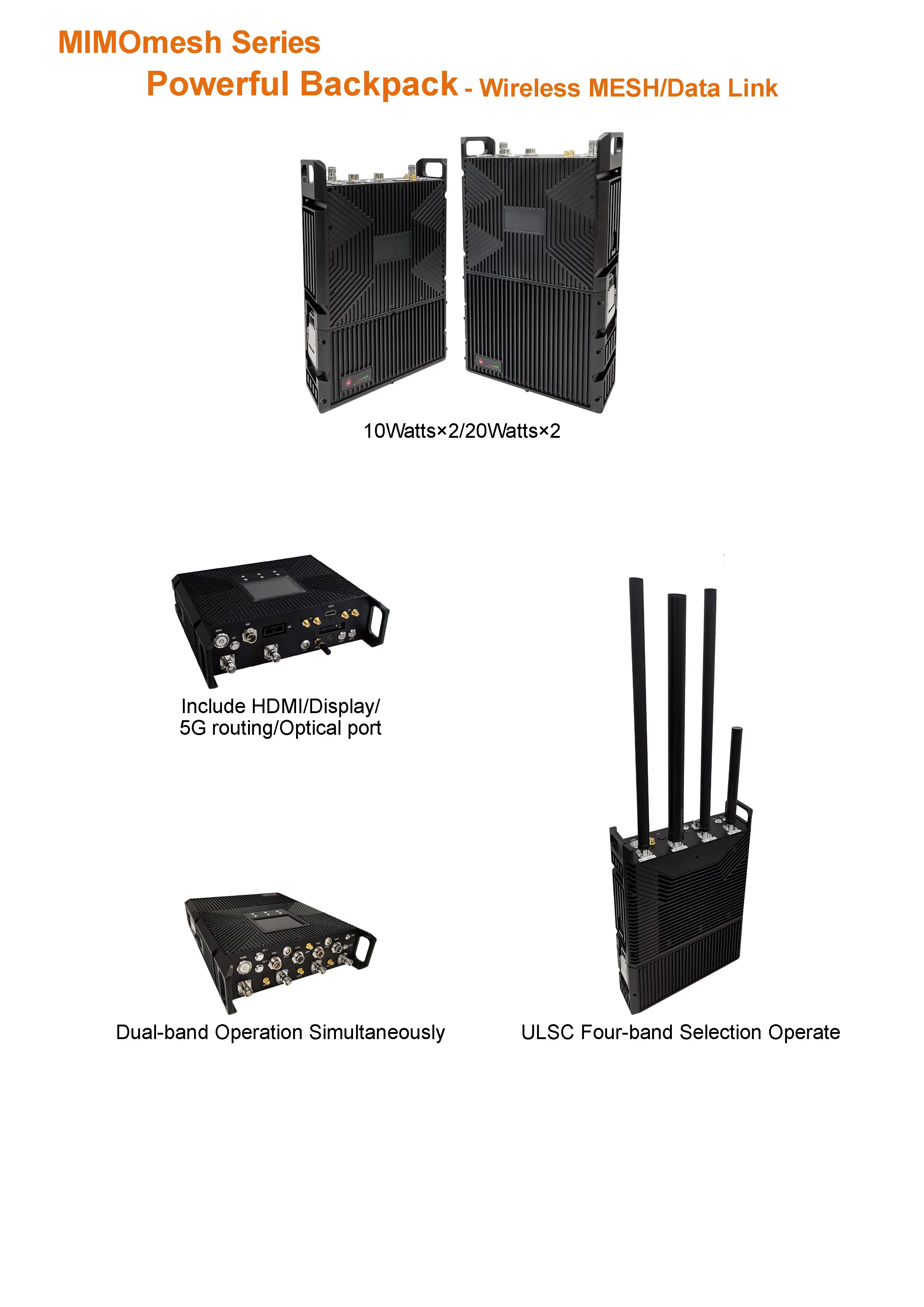

Data Radio: Powerful Backpack Series – Wireless MESH/Data Link
| Identifier | Description |
|---|---|
| SDR Platform, Waveform | AAD936X+FPGA (7Z020、7Z030、7Z035、7Z100), Mobile network MANET+MIMO |
| MIMO Technology | Space-time coding、Receive Diversity、TX /RX beamforming、Spatial multiplexing |
| Receive Sensitivity | -103dBm@5MHz BW |
| Channel Bandwidth | 1.25/2.5/5/10/20MHz (7Z020, 7Z030)/40MHz (7Z035)/80MHz (7Z100, 40MHz+40MHz dual antenna frequency transceiver of carrier aggregation), configurable |
| Modulation Mode | TD-COFDM, BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM Adaptive (Fixed setting optional) |
| RF Output Power (Support TPC, transmission power control, 1dBm adjustable) | 10Watts×2; 20Watts×2 |
| Mode | Distributed centerless Point-to-point/Point-to-multipoint/Multipoint-to-multipoint, Layer 2 or 3 of Dynamic routing、Multi-hop relay, Star/Line/Network/Hybrid |
| Single Hop Delay | Average 6ms (Unidirectional, 20MHz BW). |
| Encryption | DES, AES128/256 (SM4/SNOW3G/ZUC optional, Chip/TF card encryption customized or external encryption machine) |
| Anti-Jamming Mode | Manual spectrum scanning channel selection/Full band enhanced intelligent frequency selecting(spectrum awareness)/Full band adaptive frequency hopping FHSS/Roaming mode, Multi-level anti-interference |
| Local/Remote Management | Operating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, real-time display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic, node distance, GPS/BD/GLONASS positioning electronic map, temperature/voltage/jamming Monitoring, software upgrade. Remote silence and wake-up optional |
| Other | The startup time is less than 28 seconds, and the network access/update/switchover time is less than 1 second; There is no limit on the user capacity of a single system (256 nodes or more) and the number of hops in Mesh networks (Data 15+ hops, voice 10+ hops, video 8+ hops); The total transmission rate loss for more than three hops is less than 70%; Automatic carrier tracking, adapted to a Doppler frequency deviation of ±6kHz frequency offset, supports mobile communication at speeds above 7200 kilometers per hour (6 Mach, 2000 meters per second) |
Bands(70M-6GHz/Uper C-X-Ku customizable. Same frequency or different frequency of TDD, 2T2R at single band or 1T2R at dual-band) | |
| VHF/UHF (MHz) | 360-450/450-550/570-700/800-950, 225-400/225-678/320-470* |
| L Band (GHz) | 1.0-1.2/1.1-1.3/1.3-1.5/1.5-1.7/1.6-1.8, 1.0-1.5/1.1-1.6/1.2-1.7/1.3-1.8/1.6-2.3/1.7-2.4/1.8-2.5* |
| S Band (GHz) | 2.0-2.2/2.2-2.4/2.3-2.5/2.5-2.7/2.7-2.9/3.2-3.4/3.4-3.6/3.6-3.8, 1.9-2.7/2.0-2.7/2.1-2.7/2.7-3.6* |
| C Band (GHz) | 4.4-5.0/5.25-5.85, 4.2-5.2/5.5-6.0/6.4-7.2* |
| (Note: RF power, Dimensions, Weight is different) | |
| MIIT (MHz) | 336-344/512-592/566-626/606-678/1420-1520/1430-1444 |
Mechanical | |
| Size/Weight |
|
| Installation/Color | 4 Mounting Holes/Black, Iron Gray (Army Green Optional) |
Power | |
| Supply Voltage | 18-32V DC, 10Watts×2/20Watts×2 |
| Power consumption |
|
| Power Selection |
|
Interface | |
| Basic interface | 2xTNC, 1-2xRJ45 Ethernet 100/1000BaseT, RS232, Wi-Fi AP, DC input. BD/GPS (GNSS), TTL (UART)/SBUS/Bluetooth 1.2-230.4Kbps available. Supports transparent transmission over Ethernet and serial ports, and all communication protocols, including MAVLink. Selectable service priority |
| Push to talk/Auxiliary interface | MIC, SPK, PTT, GND/1xRS232, TTL, SBUS |
| Network Extension Optional | Public Network Routing/4G LTE, WB-NB integration, Fiber, Satellite |
| Video Extension Optional | Low Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1 |
| Link Status Indicator |
|
| RSSI Link Indicator |
|
| Management Interface/ Control Interface | Web-based network management/GUI, API for secondary development interface/SNMP |
Environmental | |
| Operation Temperature | -40℃ ~+80℃ |
| Protection Level | IP66 (IP67/IP68 Customized) |
