Mimo Mesh Radio

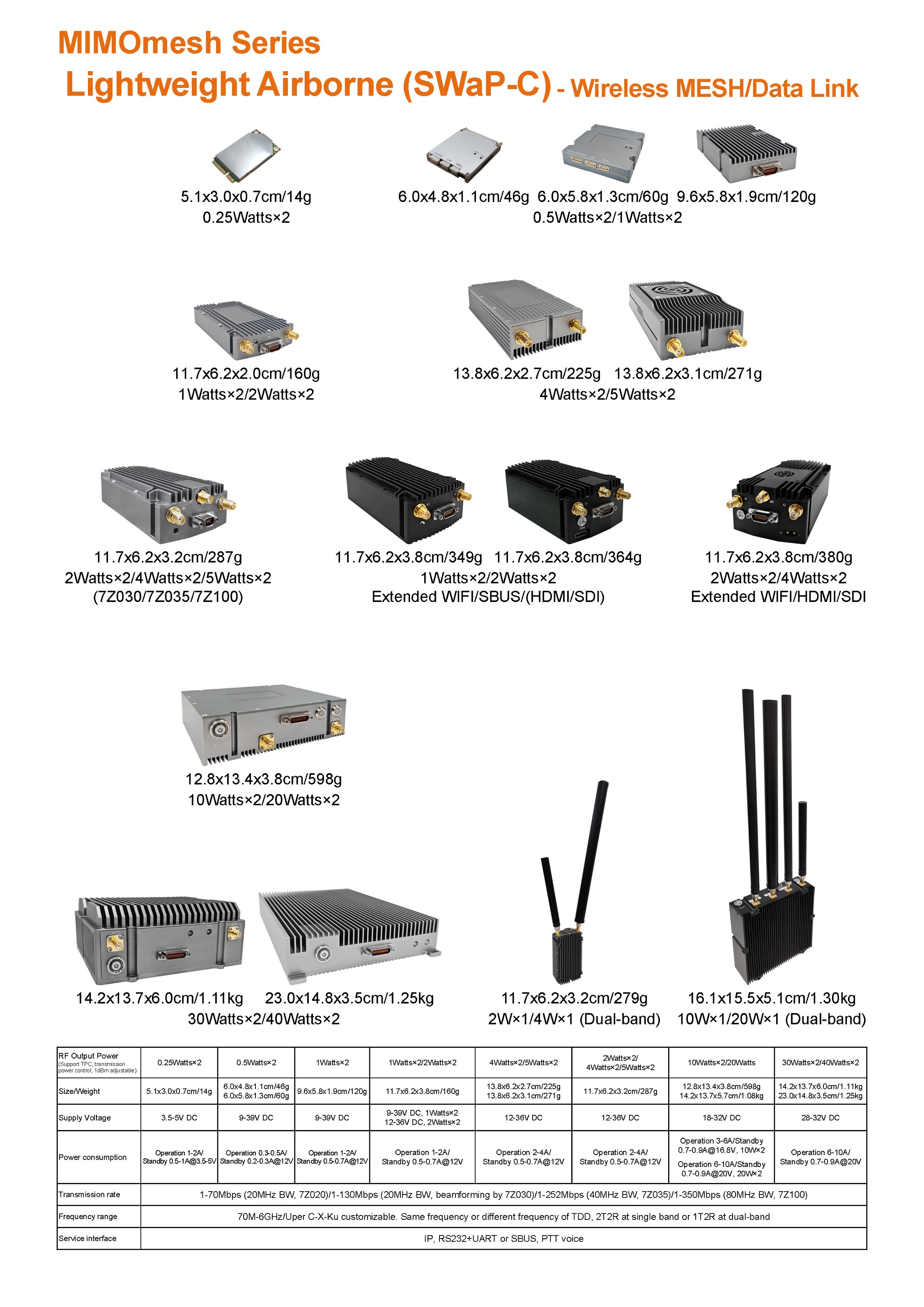

Data Radio: Lightweight Airborne (SWaP-C)– Wireless MESH/Data Link

MIMOmesh Series

Identifier Description
SDR Platform, WaveformAAD936X+FPGA (7Z020, 7Z030, 7Z035, 7Z100), Mobile network MANET+MIMO
MIMO TechnologySpace-time coding, Receive Diversity, TX /RX beamforming, Spatial multiplexing
Receive Sensitivity-103dBm@5MHz BW
Channel Bandwidth1.25/2.5/5/10/20MHz (7Z020, 7Z030)/40MHz (7Z035)/80MHz (7Z100, 40MHz+40MHz dual antenna frequency transceiver of carrier aggregation), configurable
Modulation ModeTD-COFDM, BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM Adaptive (Fixed setting optional)
RF Output Power (Support TPC, transmission power control, 1dBm adjustable)0.25Watts×2; 0.5Watts×2; 1Watts×2; 2Watts×2; 4Watts×2; 5watts×2; 10Watts×2; 20Watts×2; 40Watts×2
ModeDistributed centerless Point-to-point/Point-to-multipoint/Multipoint-to-multipoint, Layer 2 or 3 of Dynamic routing、Multi-hop relay, Star/Line/Network/Hybrid
Single Hop DelayAverage 6ms (Unidirectional, 20MHz BW).
EncryptionDES, AES128/256 (SM4/SNOW3G/ZUC optional, Chip/TF card encryption customized or external encryption machine)
Anti-Jamming ModeManual spectrum scanning channel selection/Full band enhanced intelligent frequency selecting(spectrum awareness)/Full band adaptive frequency hopping FHSS/Roaming mode, Multi-level anti-interference
Local/Remote ManagementOperating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, real-time display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic, node distance, GPS/BD/GLONASS positioning electronic map, temperature/voltage/jamming Monitoring, software upgrade. Remote silence and wake-up optional
Others
  • The startup time is less than 28 seconds, and the network access/update/switchover time is less than 1 second;
  • There is no limit on the user capacity of a single system (256 nodes or more) and the number of hops in Mesh networks (Data 15+ hops, voice 10+ hops, video 8+ hops);
  • The total transmission rate loss for more than three hops is less than 70%;
  • Automatic carrier tracking, adapted to a Doppler frequency deviation of ±6kHz frequency offset, supports mobile communication at speeds above 7200 kilometers per hour (6 Mach, 2000 meters per second)

Bands

(70M-6GHz/Uper C-X-Ku customizable. Same frequency or different frequency of TDD, 2T2R at single band or 1T2R at dual-band)
VHF/UHF (MHz)360-450/450-550/570-700/800-950, 225-400/225-678/320-470*
L Band (GHz)1.0-1.2/1.1-1.3/1.3-1.5/1.5-1.7/1.6-1.8, 1.0-1.5/1.1-1.6/1.2-1.7/1.3-1.8/1.6-2.3/1.7-2.4/1.8-2.5*
S Band (GHz)2.0-2.2/2.2-2.4/2.3-2.5/2.5-2.7/2.7-2.9/3.2-3.4/3.4-3.6/3.6-3.8, 1.9-2.7/2.0-2.7/2.1-2.7/2.7-3.6*
C Band (GHz)4.4-5.0/5.25-5.85, 4.2-5.2/5.5-6.0/6.4-7.2*
Row 17(Note: RF power, Dimensions, Weight is different)
MIIT (MHz)336-344/512-592/566-626/606-678/1420-1520/1430-1444

Mechanical

Size/Weight
  • 5.1×3.0x0.7cm/14g, 0.25Watts×2-Iron Gray
  • 6.0×4.8×1.1cm/46g, 0.5Watts×2-Iron Gray
  • 6.0×5.8×1.3cm/60g, 0.5Watts×2-Iron Gray
  • 9.6×5.8×1.9cm/120g, 1Watts×2-Iron Gray
  • 11.7×6.2×2.0cm/160g, 1Watts×2/2Watts×2-Iron Gray
  • 11.7×6.2×3.8cm/349g, 1Watts×2/2Watts×2-Black
  • 11.7×6.2×4.2cm/364g, 1Watts×2/2Watts×2-Multi-interface Black
  • 11.7×6.2×3.8cm/380g, 2Watts×2/4Watts×2-Fan Black
  • 11.7×6.2×3.2cm/287g, 2Watts×2/4Watts×2/5Watts×2-Iron Gray
  • 13.8×6.2×2.7cm/225g, 4Watts×2-Iron Gray
  • 13.8×6.2×3.1cm/271g, 5Watts×2-Fan Iron Gray
  • 12.8×13.4×3.8cm/598g, 10Watts×2/20Watts×2-Iron Gray
  • 14.2×13.7×5.7cm/1.08kg, 10Watts×2/20Watts×2-Black
  • 14.2×13.7×6.0cm/1.11kg, 30Watts×2/40Watts×2-Dark Gray
  • 23.0×14.8×3.5cm/1.25kg, 30Watts×2/40Watts×2-Thin Iron Gray
Installation/Color4 Mounting Holes/Black, Iron Gray (Army Green Optional)

Power

Supply Voltage
  • 3.5-5V DC, 0.25Watts×2
  • 9-39V DC, 0.5Watts×2/1Watts×2
  • 12-36V DC, 2Watts×2/4Watts×2/5Watts×2
  • 18-32V DC, 10Watts×2/20Watts×2
  • 28-32V DC, 30Watts×2/40Watts×2
Power consumption
  • Operation 1-2A/Standby 0.5-1A@3.5-5V, 0.25Watts×2
  • Operation 0.3-0.5A/Standby 0.2-0.3A@12V, 0.5Watts×2
  • Operation 1-2A/Standby 0.5-0.7A@12V, 1Watts×2/2Watts×2
  • Operation 2-4A/Standby 0.5-0.7A@12V, 4Watts×2/5Watts×2
  • Operation 3-6A/Standby 0.7-0.9A@18V, 10Watts×2
  • Operation 6-10A/Standby 0.7-0.9A@20V, 20Watts×2
  • Operation 22A/Standby 0.4-1.6A@28-32V, 30Watts×2/40Watts×2
    Power SelectionPower Supply by Main Cable

    Interface

    Basic interface
    • 2xIPEX/2xMMCX/2xSMP/2xSMA RF,
    • 1-2xRJ45 Ethernet 100/1000BaseT,
    • RS232,
    • DC input.
    • TTL (UART)/SBUS/Bluetooth 1.2-230.4Kbps,
    • WIFI AP,
    • BD/GPS (GNSS) optional.
    • Supports transparent transmission via Ethernet and serial ports,
    • and supports all communication protocols, including MAVLink. Service priority can be selected
    Network Extension OptionalPublic Network Routing/4G LTE, WB-NB integration, Fiber, Satellite
    Video Extension OptionalLow Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1
    Link Status Indicator
    • Steady red – The network is not connected
    • Blinking red – Starting/not connected to the network
    • Steady green – The network is connected
    • Blinking green – Voice PTT is down
    RSSI Link Indicator
    • Steady green – The link quality is excellent
    • Steady blue – The link quality is good
    • Steady yellow – The link quality is medium
    • Steady purple – The link quality is slightly worse
    • Steady red – The link quality is poor or link is down
    Management Interface/ Control InterfaceWeb-based network management/GUI, API for secondary development interface/SNMP

    Environmental

    Operation Temperature-40℃ ~+80℃
    Protection LevelIP66 (IP67/IP68 Customized)
